Color Sorter 2000

Since 1990
SORTERS FOR SELF-PROPELLED HARVESTERS

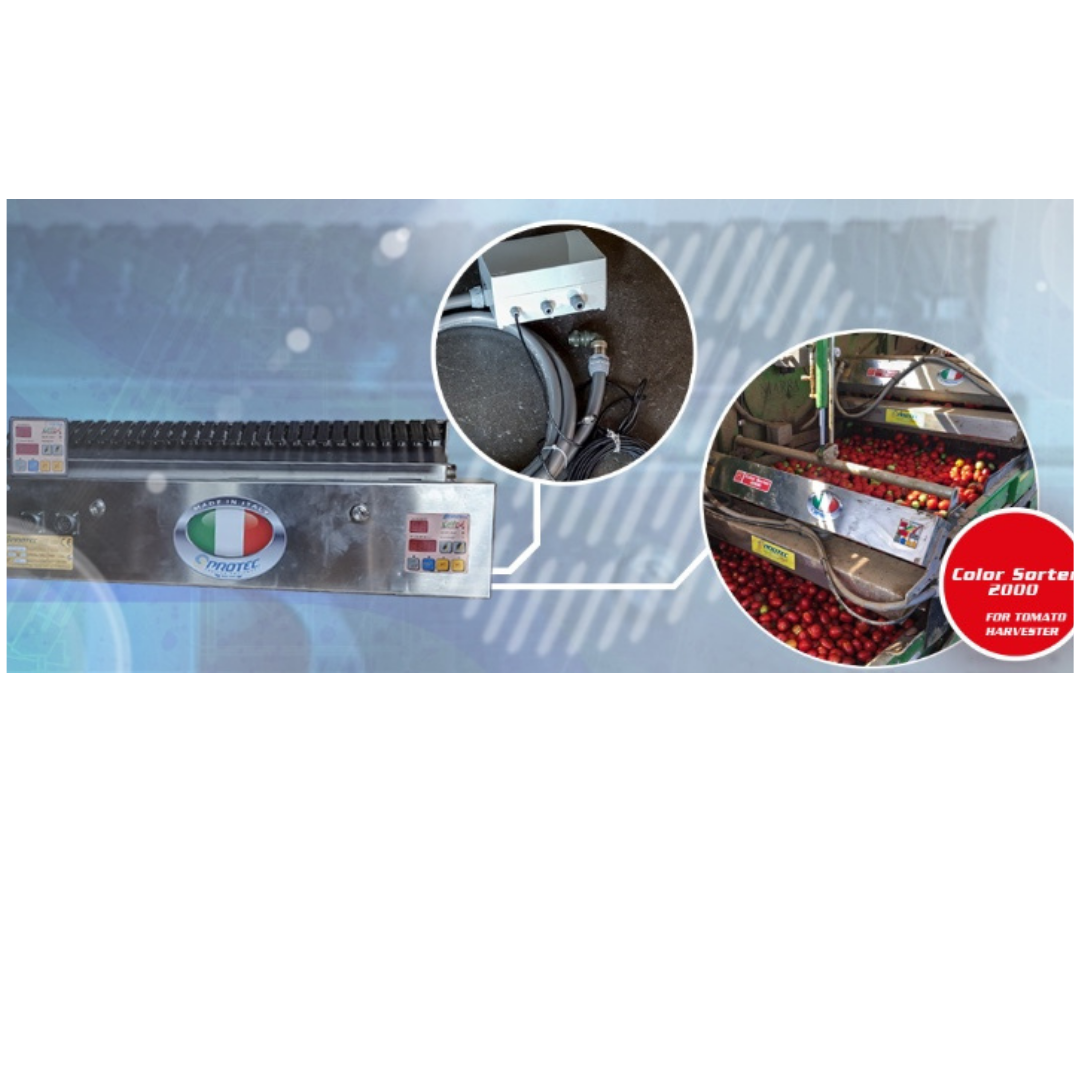

Color sorter 2000 model to install on self-propelled tomato harvesters.
Models on request: 30c. 32c. 35c. 40c. 42c. 45c. 48c. 50c.
Using a high-precision electronic system this machine sorts tomatoes of the desired color tone and removes possible foreign bodies from the product inflow line directly onto the field, before delivery to the processing companies.
During the harvest, the operator does not need to intervene frequently, as the system is provided with self-diagnostic functions that warn of the onset of problems in the rejection or in the vision unit.

Technical characteristics:

• • N° 1 vision electronic unit
• • N° 1 pneumatic ejector unit
• • N° 1 electronic-pneumatic unit connecting cable
• • N° 1 wooden box
• • N° 1 water nebulizer to clean the glass
• • N° 1 litre of oil for air lubrication
• • N° 1 manual
• • N° 1 Kit to connect the electronic unit with the remote command console
• • N° INSTALLATION KIT ON ANY BRAND OF HARVESTER
• • No-leaf-harvesting programme

The color Sorter 2000 can be installed also as “Excavator”.

• Total reading width is 750mm 800mm 875mm 1000 mm 1050 mm 1125 mm 1200 mm
• Optical resolution 25mm
• Visible LED Illumination/infrared
• Frame in stainless steel AISI 304
• IP65 Protection

Lubricated air mechanical/pneumatic

• Operating pressure 5÷6 bar
• Air consumption 26 l/min 40 l/min 53 l/min
• Frame in stainless steel AISI 304
• Protection IP65

• Operating voltage 12/24 Vcc
• Power used 1 A
